Backbone of Britain

The evergreen Ford Transit minibus is as popular today as ever. Ripe for conversion in L3 and L4 wheelbase, the Ford Transit converts into a 17 seater minibus with wheelchair access. We also offer a front entrance conversion making this an ideal minibus conversion choice for public service vehicle operators.

9-17 Seated passengers
4 Wheelchair users
2 Model variants
2.0TDCi Engine capacity

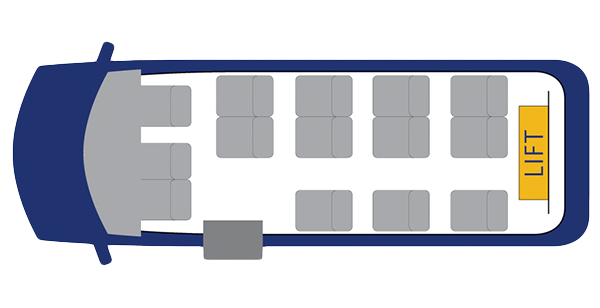

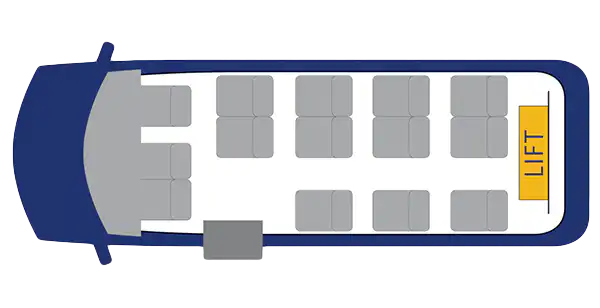

Ford Transit 14 Seats Fp

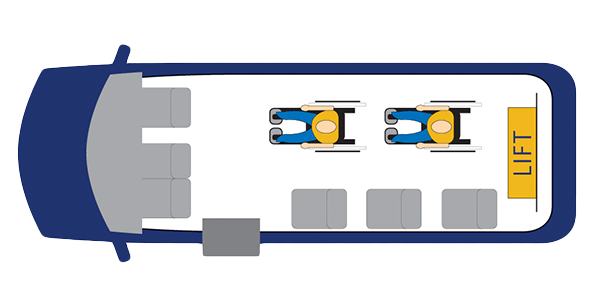

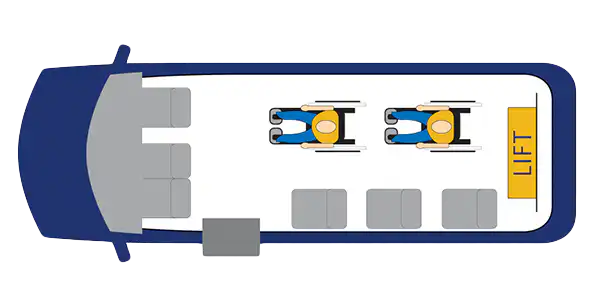

Ford Transit 14 Seats Wheelchair Fp

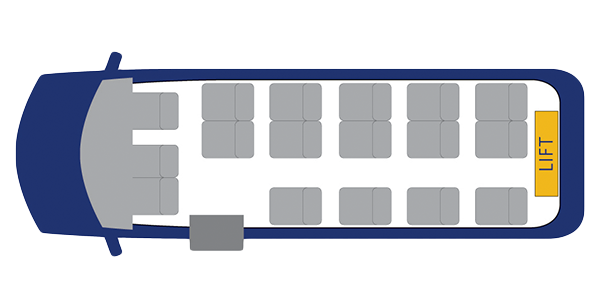

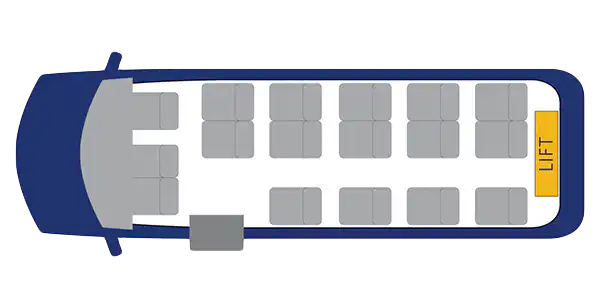

Ford Transit 17 Seats Fp

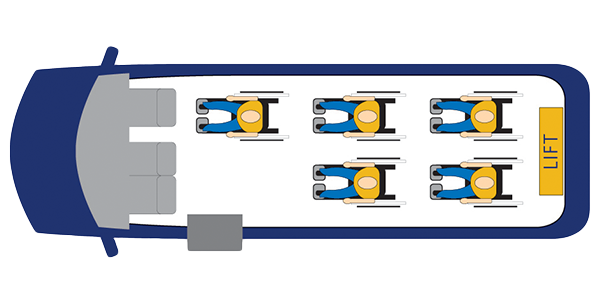

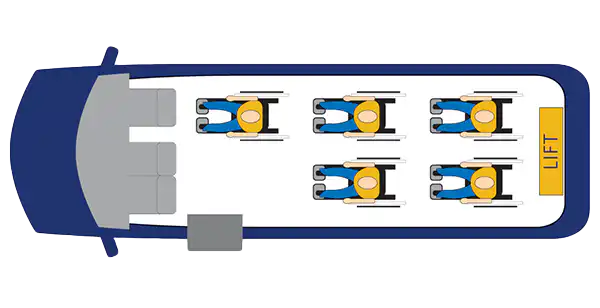

Ford Transit 17 Seats Wheelchair Fp

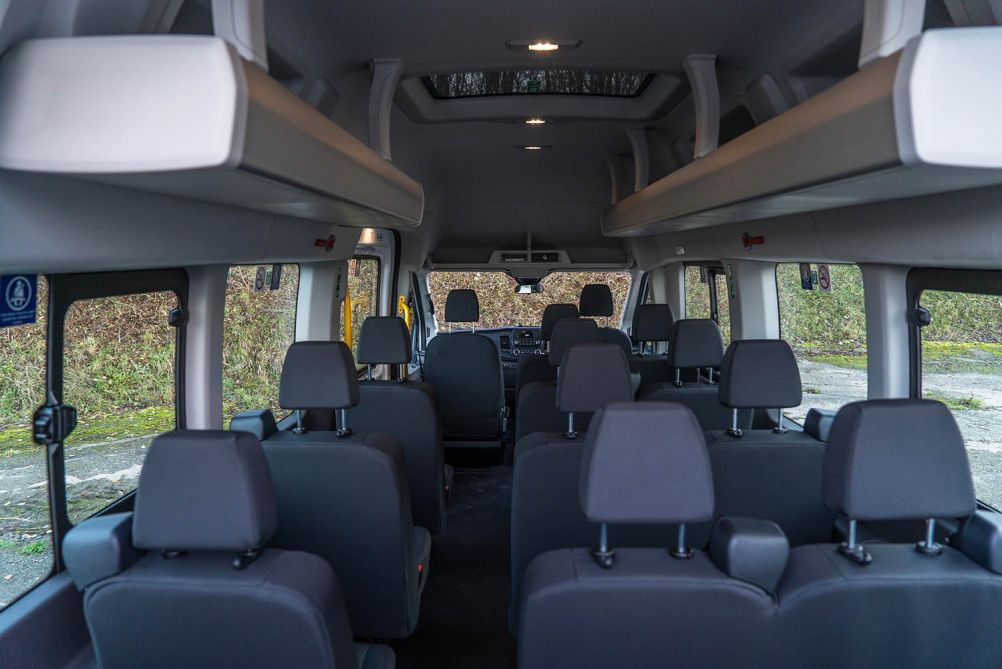

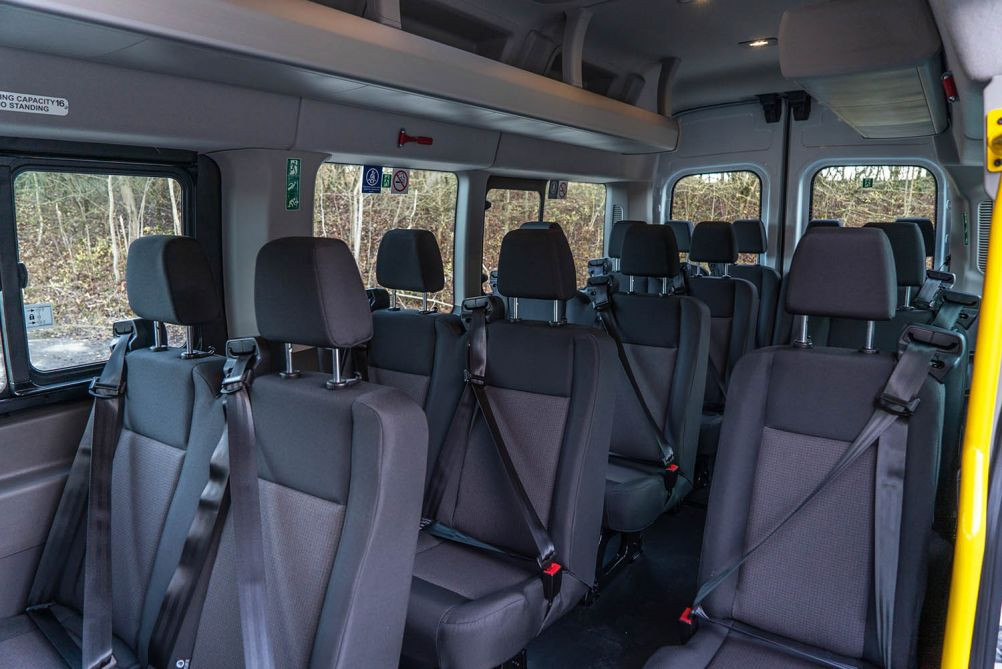

Seating layout

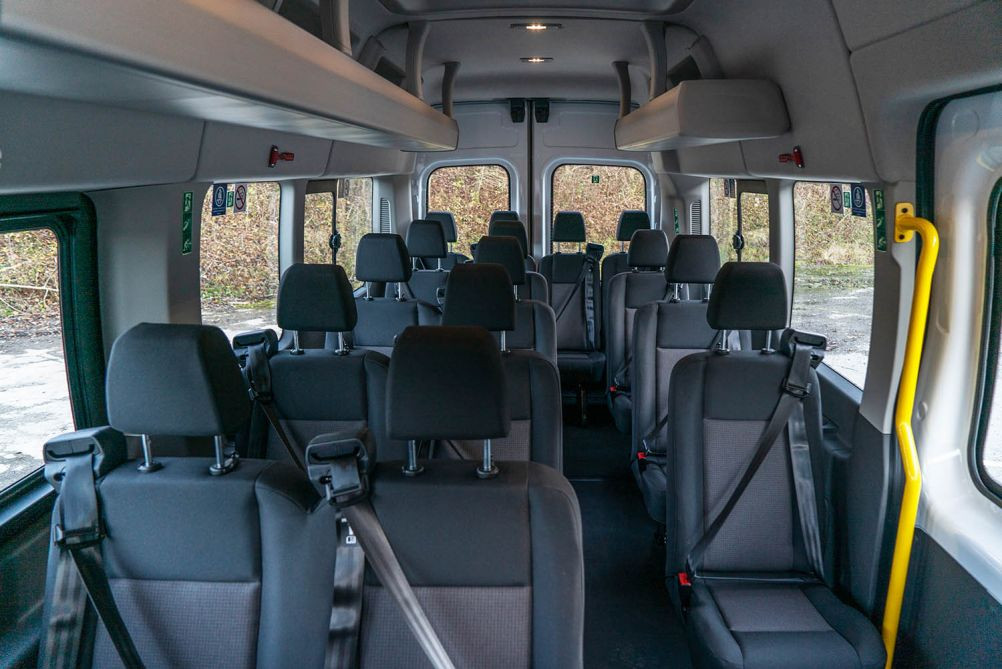

The Ford Transit minibus conversion can accommodate up to 16 OEM seats in the rear cabin with integral seat belts.

Engine options

With the Ford Transit minibus you can choose from two engine options, the 2.0 TDCi EcoBlue (130ps) or the 2.0 TDCi EcoBlue (170ps).

2.0 TDCi EcoBlue (130ps)
Capacity
1998cc
Cylinders
4
Euro Compliance
6.2
Torque
385Nm@1800-2500rpm
Output
130bhp@3600rpm
Transmission
6 Spd Manual
Transmission Layout
RWD/FWD
Combined Cycle (mpg)
34.9 mpg
2.0 TDCi EcoBlue (170ps)
Capacity
1998cc
Cylinders
4
Euro Compliance
6.2
Torque
405Nm@1700-2600rpm
Output
170bhp@3600rpm
Transmission
6 Spd Manual
Transmission Layout
RWD/FWD
Combined Cycle (mpg)
34.8 mpg
Bodystyle options

The most popular body style options for minibus conversions are L3 H3 and L4 H3.

L3 H3
Height
2780mm
Length
5981mm
GVW
4100kg
L4 H3
Height
2790mm
Length
6704mm
GVW
4600kg
Standard features

The Ford Transit is a well equipped and popular base vehicle which comes with the following standard equipment.

Interior Features
  • Electric windows
  • Remote locking
  • Bluetooth connectivity
  • DAB radio with USB
  • Drivers 8 way adjustable seat
Safety Features
  • ESC (Electronic Stability Control)
  • EBA (Emergency Braking Assistance)
  • ABS, Hill Start Assist
  • Roll Stability Control
Specifications
Height 2780mm
Length 5981mm
Weight 4100kg
Colour with confidence

Explore the exterior colour options available to suit your own individual style.

Transit Blazer Blue Removebg Preview 1
Transit Blazer Blue Removebg Preview 1

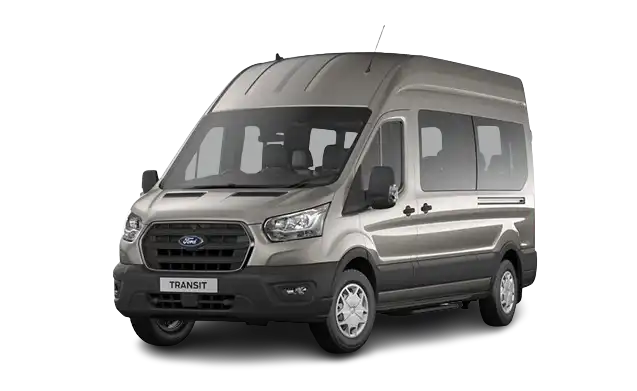

Transit Tectonic Silver Removebg Preview 1

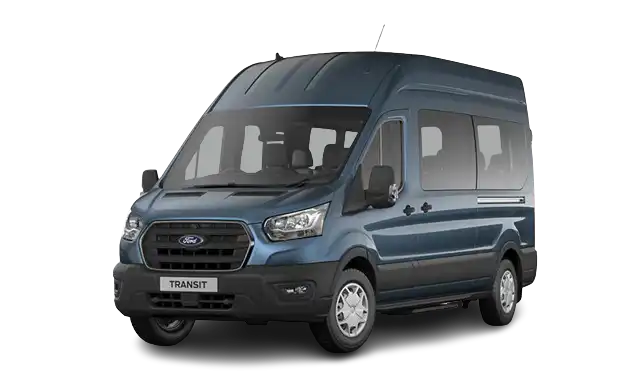

Transit Stratosphere Removebg Preview 1

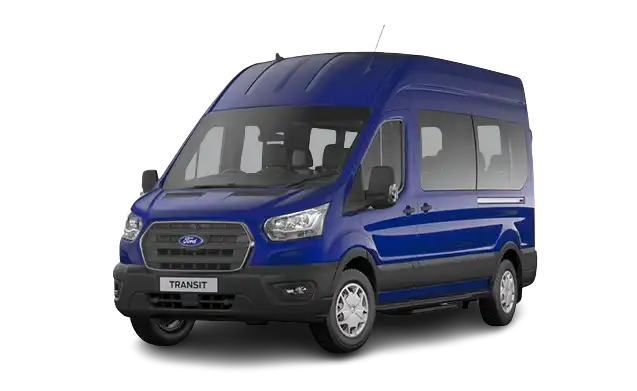

Transit Deep Impact Blue Removebg Preview 1

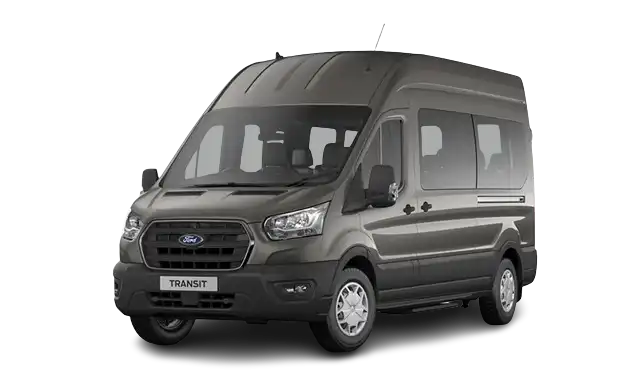

Transit Magnetic Removebg Preview 1

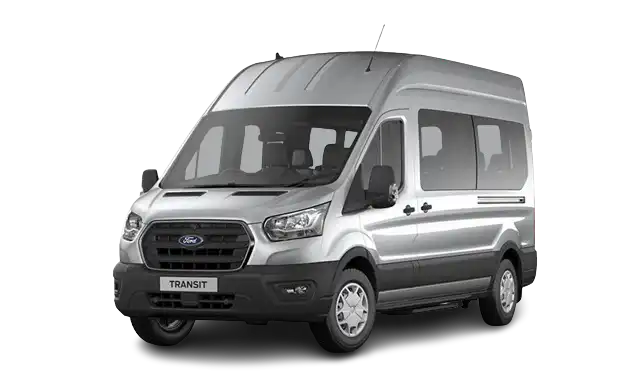

Transit Moondust Silver Removebg Preview 1

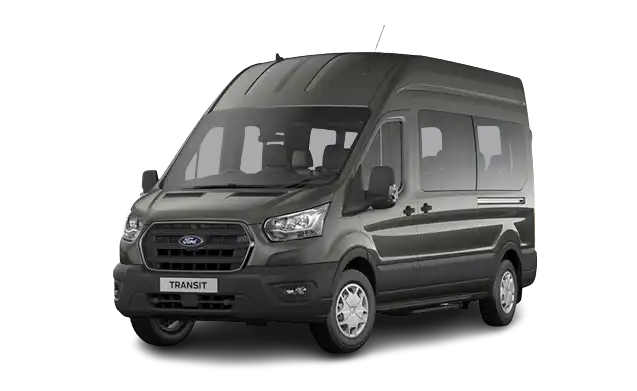

Transit Lunar Sky Removebg Preview 1

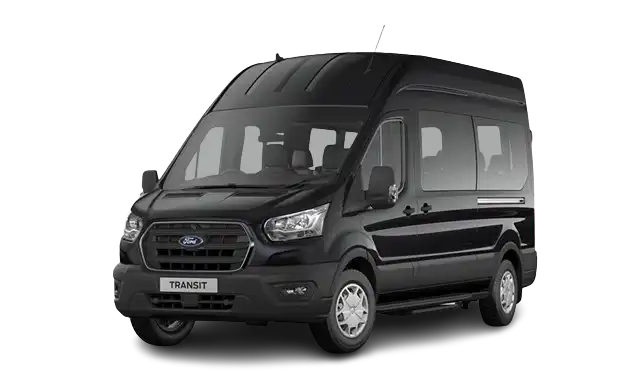

Transit Shadow Black Removebg Preview 1
Blazer Blue
